Heavy Duty Garbage Bag Making Machine

Heavy Duty Garbage Bag Making Machine
Heavy Duty Garbage Bag Making Machine
  • Heavy Duty Garbage Bag Making Machine
  • Heavy Duty Garbage Bag Making Machine
  • Heavy Duty Garbage Bag Making Machine
  • Heavy Duty Garbage Bag Making Machine
Video
Inquiry
Bag Samples
  • Heavy Duty Garbage Bag Making Machine

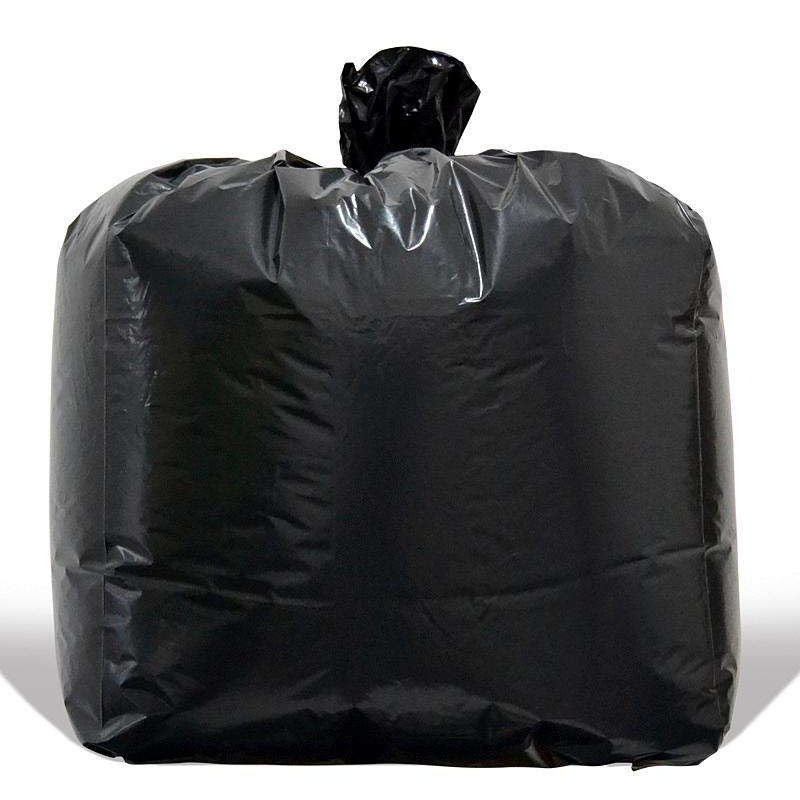

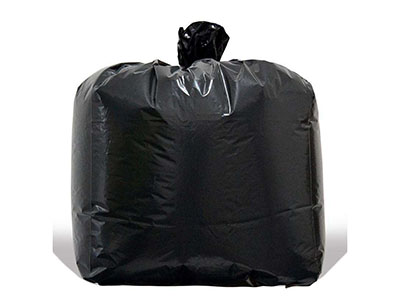

    Thick Flat Bag
  • Heavy Duty Garbage Bag Making Machine

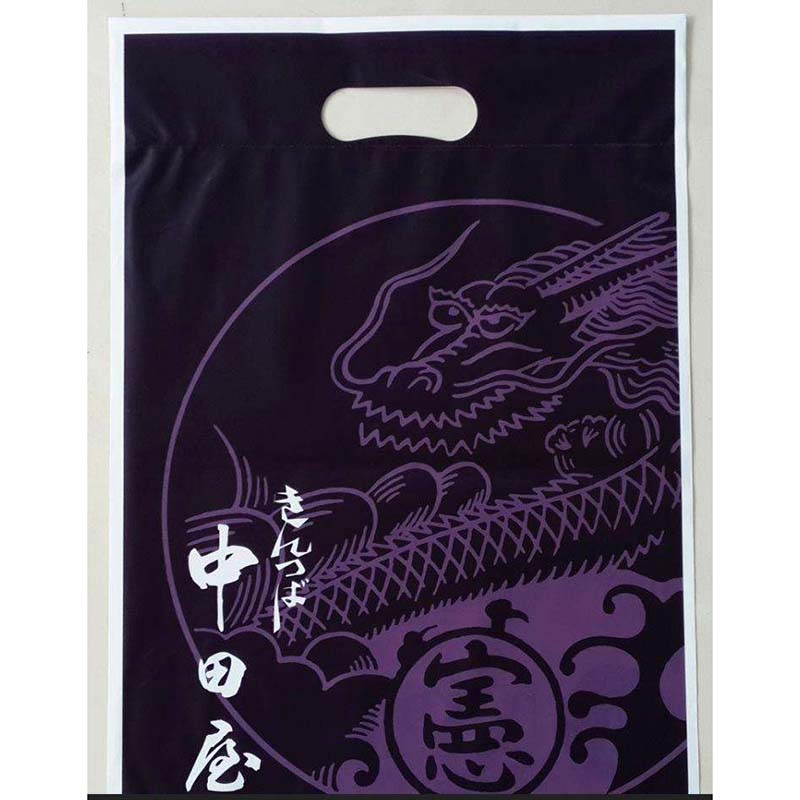

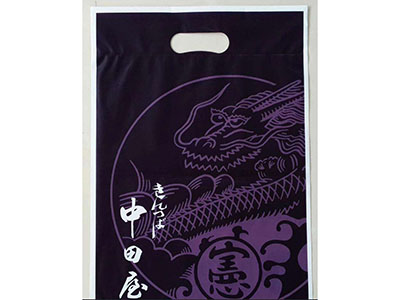

    Shopping Bag
Technical Parameters
Model
RQL-600A
RQL-800A
RQL-1000A
RQL-1200A
Max. width of bags (mm) 600 800 1000 1200
Max. length of bags (mm) 100-1500 100-1500 100-1500 100-1500
Bag making speed (pcs/min) 40-150 40-150 20-150 20-150
Total power (kW) 4 4.5 5 5
Max. thickness (μm) 500 500 500 500
Weight (kg) 1000 1100 1200 1400
Dimensions (m) 4.0*1.2*1.5 4.0*1.4*1.5 4.0*1.6*1.5 4.0*1.8*1.5
Features
  • We at TPLAST have employed Turkish high-tech design in this heavy duty garbage bag making machine. Its precise sealing line retains its shape regardless of the thickness of the film. The overall shape of the sealing line is consistent from left to right and there are no discrepancies in the width or narrowness of the line.
  • The sealing knife and cutting knife are close together, providing convenient distance between them.
  • Very thick heavy duty bags can be made by using this plastic garbage bag machine.
  • Capable of sealing and cutting bags with a maximum thickness of 500 microns, ideal for heavy-duty bag applications.
Application

This heavy duty garbage bag making machine is suitable for making thick flat bags, such as including household garbage bags, and commercial trash bags for hospitals, restaurants, hotels and industrial factories.

Details

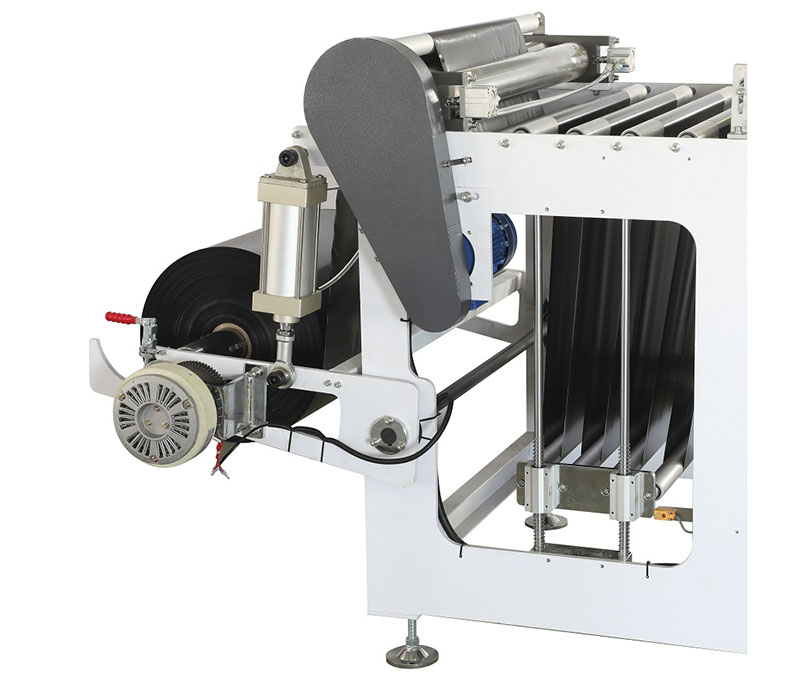

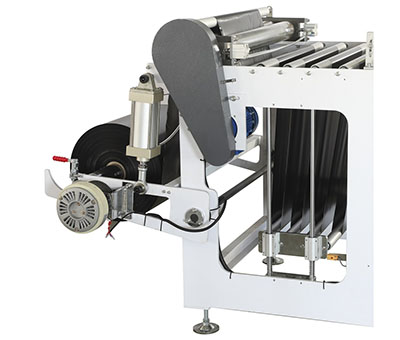

    1. Unwinder
      The unwinding unit is configured with an automatic tension control
    2. Heavy Duty Garbage Bag Making Machine
    1. Unwinder Motor
      AC Type, Delta inverter control
    2. Heavy Duty Garbage Bag Making Machine

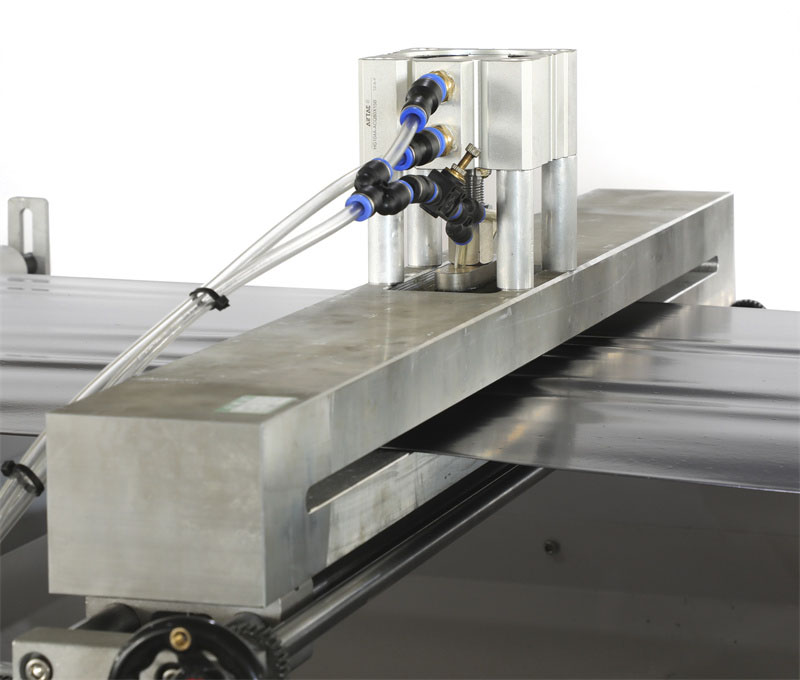

    1. Sealing and Cutting Units
      A stronger alloy steel sealing bar and an electric currency cutting knife, providing precise and effective results The sealing lines remain non-deformable no matter how thick or thin the material is Capable of sealing and cutting bags up to a maximum thickness of 600μm
    2. Heavy Duty Garbage Bag Making Machine

    1. Control System

      • Taiwan Brand Main Motor
      • Delta Inverter
      • Omron Temperature Controller
      • Panasonic Photocell
      • Schneider Electric Parts
    2. Heavy Duty Garbage Bag Making Machine
    1. Photocell
      The Panasonic photocell from Japan has a maximum cutting length of 1500 mm and is adjustable
    2. Heavy Duty Garbage Bag Making Machine
  • Feeding Unit PU conveyor belt provides longer service life
Optional Parts
  • Heavy Duty Garbage Bag Making Machine

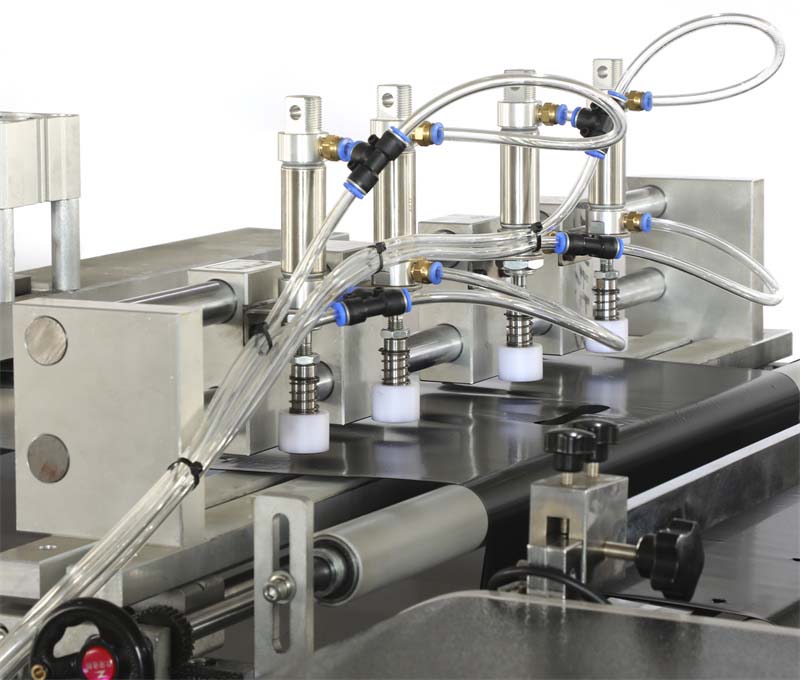

    D Puncher
  • Heavy Duty Garbage Bag Making Machine
    Hole Puncher
  • Heavy Duty Garbage Bag Making Machine

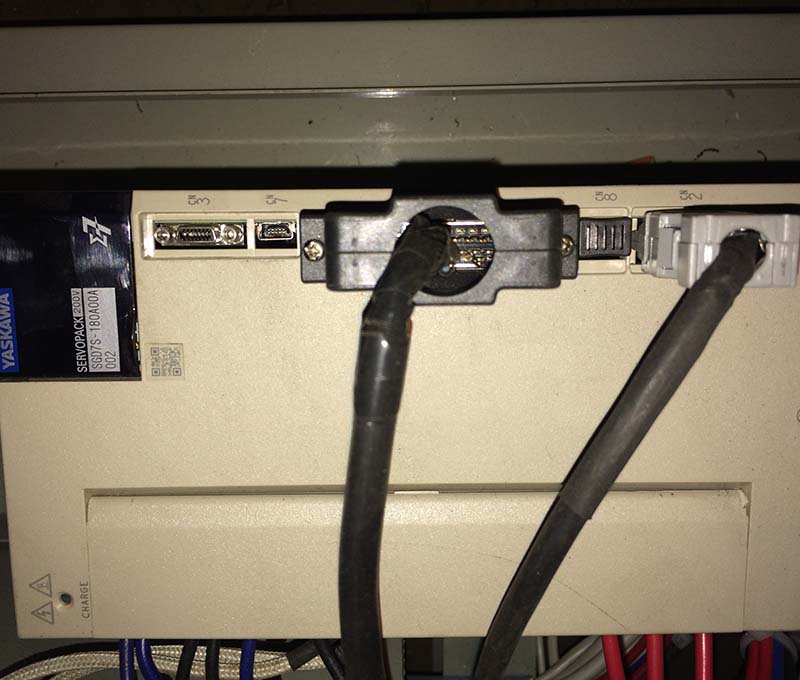

    Yaskawa Servo Motor
